Quickstart: Your First Imaging Session

First of all, let’s make sure that the drive that we are about to image is in good condition. Click ‘Diagnose’ and select the port on which the drive is located, and then click the ‘Start’ button at the bottom of the screen.

During the Diagnostics process, the following subsystems of the drive will be checked: the circuit board that has the media service, the firmware, and the file system of the drive.

At the end of each subsection of the Diagnostics report there will be a Summary line — either in green colour, in yellow, or in red — summarising the state of the subsystem of the drive. If it is in green colour, it means that the subsystem of the drive is in good condition; if it’s in yellow, there [are] some issues with the subsystem of the drive; if it’s in red, the issues are severe.

Get The Latest DFIR News

Join the Forensic Focus newsletter for the best DFIR articles in your inbox every month.

Unsubscribe any time. We respect your privacy - read our privacy policy.

Also, at the top of the Diagnostics report there is a box, either in green, yellow or red colour, giving you the summary of the overall state of the drive.

Now that we have made sure that this drive is in good condition, we can proceed with imaging.

Click ‘Image’, select the source drive, then select the target drive, click ‘Continue’ button, and the ‘Start’ button. Now confirm that you are ready to overwrite the data on the target device, and the imaging process has started.

Task-Oriented Interface

While this imaging session is running, let’s return to the homepage. You must have already noticed that TaskForce has a task-oriented workflow: you have ‘Diagnose’, ‘Image’, ‘Hash’, ‘Wipe’, and ‘Other’ buttons. Within the ‘Other’ category you can see additional tasks.

And if you would like to hash a device, click ‘Hash’, and now you can select a device. In this panel, you can see all eighteen of TaskForce’s ports. There are six SATA ports; six SAS ports that can also be used for SATA devices; four USB ports; one IDE; and one Extensions port.

If there are any devices that have an HBA or DCO area enabled on them, an ATA password, or even a short-circuit situation, there will be a notification about it in red colour next to the details of this drive in its port.

Now you can select the drive that you would like to hash, and click the ‘Start’ button to start the process. By returning to the home page, you can track the currently running processes.

How To Image A Source Drive

Now let’s start an imaging session. Once you have clicked ‘Image’, you will see the panel with all devices come up that are connected to TaskForce. However, you are only able to select the devices in the Source mode. This indication here means the port is currently in the Source mode. Remember that the Source switch is located next to this port on the hardware unit.

You will not be able to select a target device here, because this is the ‘Select Source Device’ panel. In the ‘Select Target Devices’ panel you are able to select one or more targets for this imaging session. Up to five targets can be selected per session, and you will not be able to select a Source device, thus protecting all the evidence drives connected to the unit.

Then click ‘Continue.’ Double-check your imaging settings, and click the ‘Start’ button. If your target device is smaller than the source device, you will be prompted to confirm your action. You will also be prompted to confirm that you are ready to overwrite the data on the target device.

Now the imaging session has started. You can return to the homepage to track the status of all the currently running processes.

Home Screen

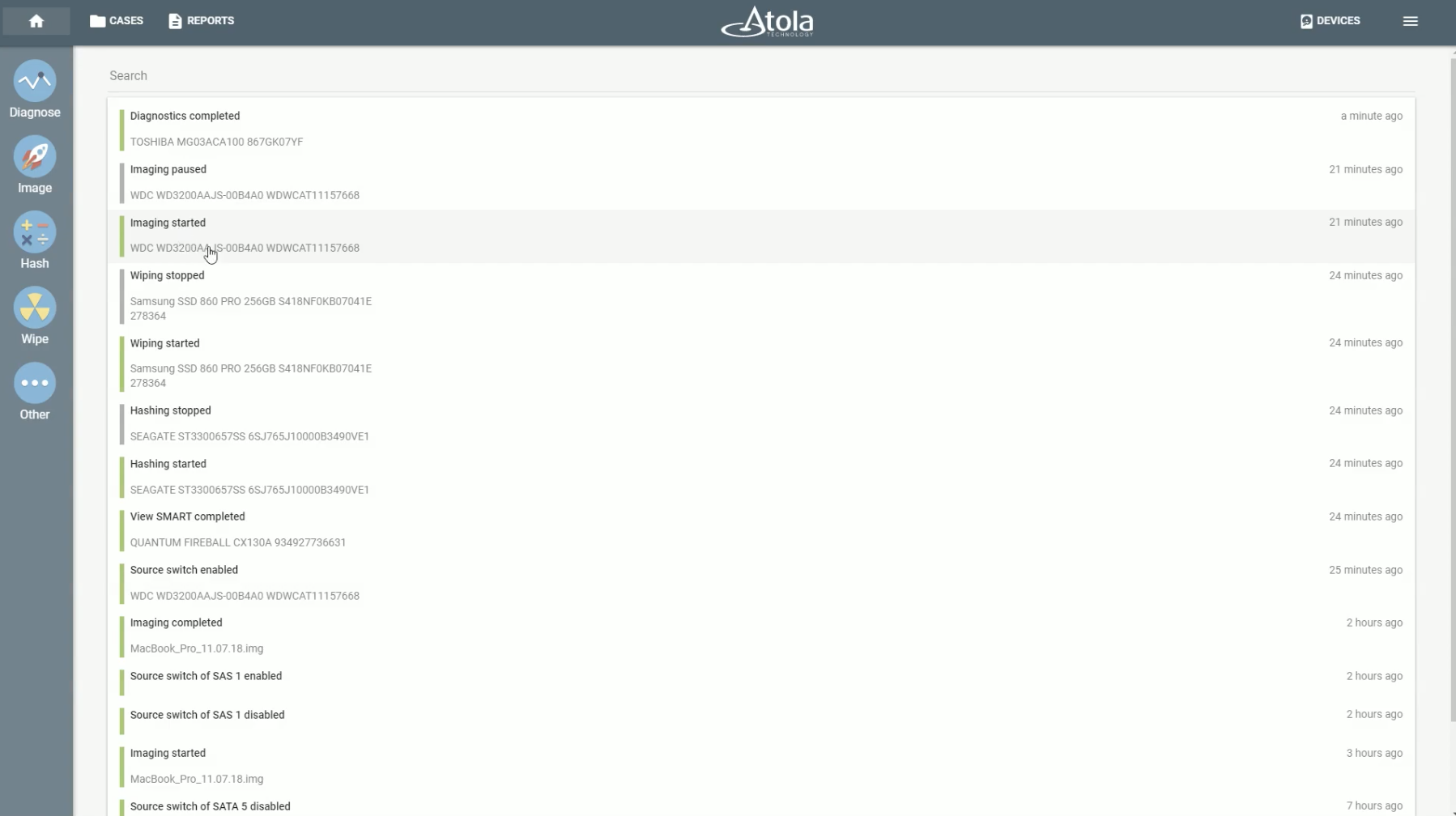

Once you are in the home screen, you see the list of the currently running processes in the upper part of the screen, in the section called ‘Active’. You can click on any of these processes to see what is happening during this session in more detail.
